FM01 STRATOS / THE CIVIC EDIT
Familiar car.
Entirely new presence.
A considered design. A different point of view.
Discover Stratos for your next Civic build.
Find your expression.
Street. Original body lines. A subtle change in presence.
Styling inspiration only. Body kits are not sold here; modified cars require a separate fitment review.
01 / THE DESIGN
The detail that
changes everything.
A split-Y silhouette. A sculpted center.
Stratos brings a sharper visual rhythm to the everyday drive.
02 / EVERY ANGLE
Go ahead.
Take it for a spin.
Turn the design in your hands.
Explore the face, the barrel and the proportions.

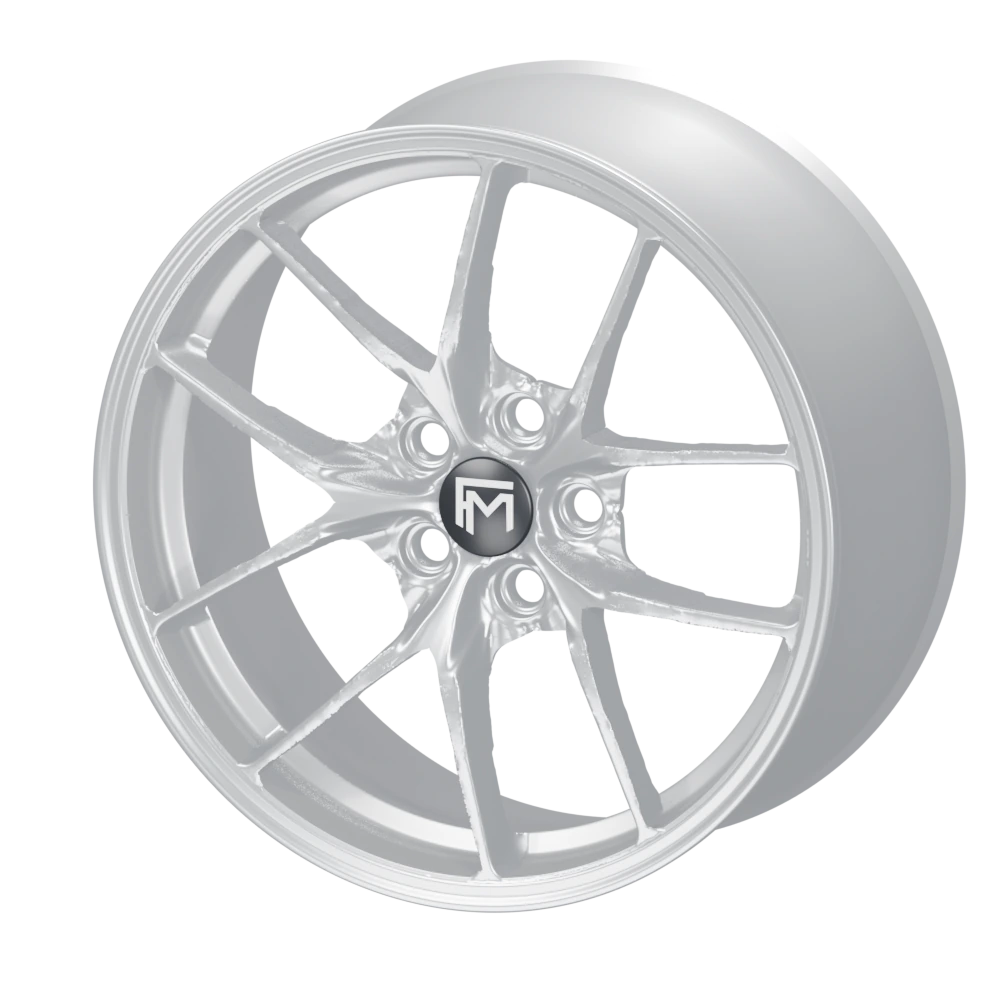

Preview rebuilt from a partial wheel scan supplied by the brand. The repeating face is reconstructed by symmetry; the rim, barrel and cap are illustrative. Scan surface imperfections remain. This is not manufacturer CAD or a fitment simulation.

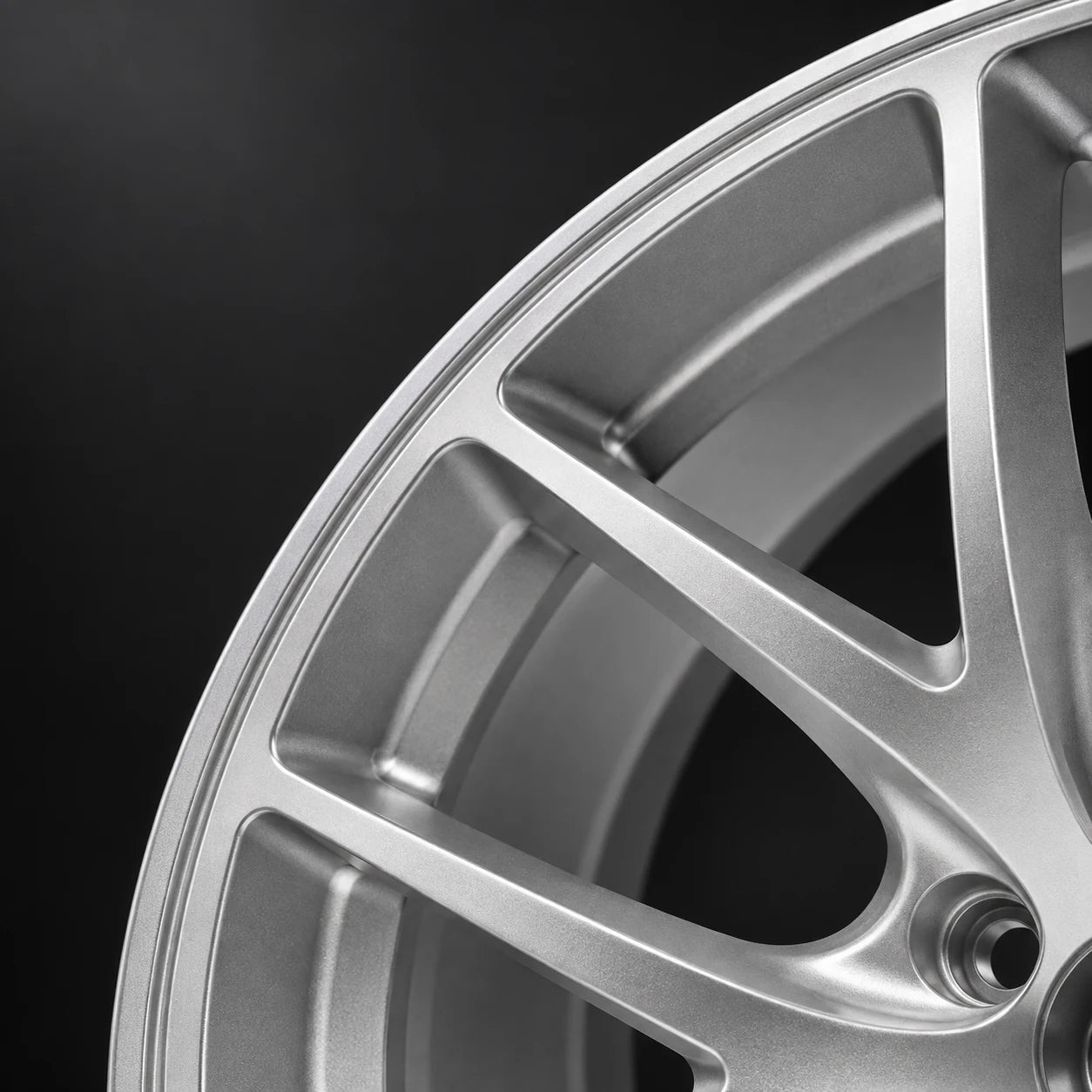

03 / SUBSTANCE IN THE SURFACE
Forged.
Then refined.
6061-T6 aluminum. One-piece construction. A spoke design defined by CNC machining.
The beauty is in the small transitions: the edge of a spoke, the depth of the center, the way a surface catches the light.
04 / CHOOSE WITH CLARITY
A considered set.
For your particular car.
Explore the size candidates, then match your car to an available catalog set.
Listed configurations. A personal fitment review.
Dimension illustration · Not to scale
Start with your size.
The first application to validate. Brake clearance, tire choice and load rating still need confirmation for this exact wheel.
- Bolt pattern
- 5 × 114.3
- Center bore
- 73.1 mm
- Offset
- ET40
- Construction
- Forged monoblock
Current prices and available specifications are shown in the catalog. Confirm the exact set, finish and delivery before purchase.
THE EVERYDAY, RECONSIDERED.
Your car.
A fresh perspective.
05 / THE USEFUL DETAILS
Everything else.
Clearly considered.
All the information that belongs
beside a confident decision.
At a glance
- Design
- FM01 Stratos · split-Y spokes
- Material
- 6061-T6 forged aluminum
- Construction
- One-piece monoblock
- Specifications discussed
- 18 × 8 ET40 / 19 × 8.5 ET40
5 × 114.3 · 73.1 mm bore - Sold as
- Four wheels · tires excluded
- Application status
- Fitment validation pending
Will these fit my Civic?
The 18-inch specification is a candidate for the 2017–2020 Civic Si. It is not yet a verified fitment for the exact FM wheel. We need to check brake clearance, tire size, suspension, wheel load rating and mounting hardware. Civic Type R is a different application.
The Civic’s 64.1 mm hub would require suitable 73.1-to-64.1 mm centering rings with this wheel bore. The installer must confirm the ring and lug-seat compatibility.
What about the 19-inch set?
The 19 × 8.5 ET40 configuration needs its own vehicle and tire review. It is not automatically approved because the 18-inch configuration is being considered. Exact catalog availability and price must also be confirmed.
Can I change the wheel specifications?
We focus on the configurations offered in the catalog. The fitment enquiry helps match an existing set to your car; it is not a custom manufacturing request.
What comes with the set?
Four wheels. Tires are excluded. Confirm the correct included lug nuts and centering rings for the application before ordering. TPMS requirements and installation should be checked with your installer.
When will my order arrive?
Availability and delivery depend on the selected set. Ask for a current dispatch and delivery estimate before purchasing. The availability shown for the exact catalog listing takes priority over the styling concepts on this page.
Are these actual product and installation images?

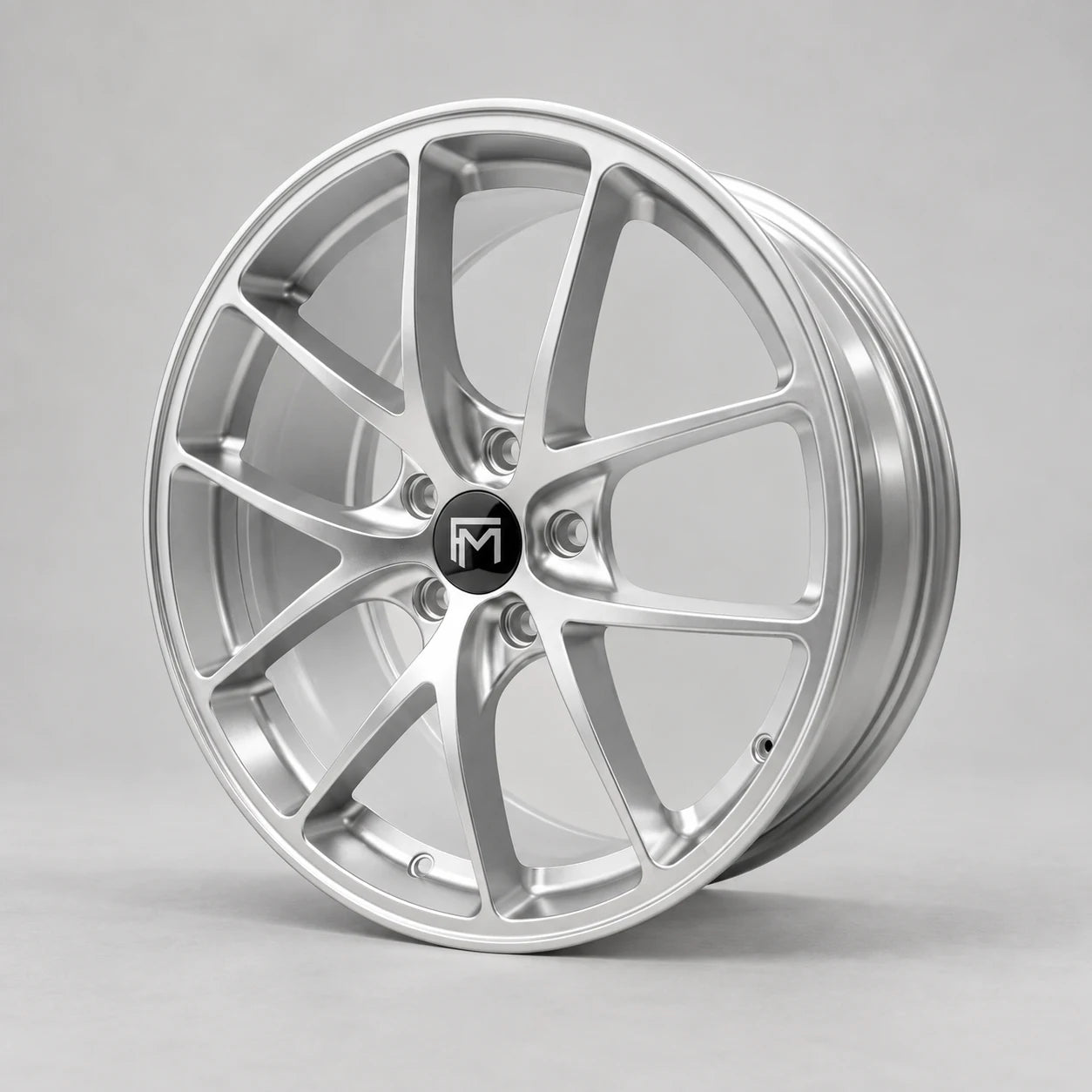

The campaign and studio images on this page are concept visualizations. The 3D wheel uses a partial reference scan with symmetry reconstruction and illustrative rim, barrel and cap; it is not manufacturer CAD. Neither is evidence of an actual Civic installation. Use the product listing for the set being purchased and ask us to review your specific car before ordering.
YOUR NEXT SET STARTS HERE.
Let’s get the details right.
A few details about your car.
A clearer way to choose your wheels.
