TPMS on Aftermarket Wheels: Compatibility, Reset, and Common Mistakes

Quick pre-buy checks for TPMS and aftermarket wheels

Start by identifying your vehicle's sensor type and physically measuring valve stem hole diameter before ordering wheels. TPMS aftermarket wheels compatibility matters because not every wheel accepts factory valves or sensor mounting methods. Remove one OEM valve core, measure the valve stem base and internal bore, and confirm whether your sensors are band-mounted, clamp-in, or snap-in. If measurement shows a bore smaller than 11.5 millimeters or a nonstandard valve seat, budget for new sensors or hub-centric adapters.

How TPMS systems detect pressure

There are two primary TPMS approaches in modern cars. Direct TPMS uses pressure sensors inside each wheel assembly and communicates exact pressure and temperature to the car computer. Indirect TPMS relies on wheel speed and ABS sensors to detect pressure differences without internal wheel sensors. When you change wheels, direct TPMS requires physical sensor compatibility and sometimes a re-learn procedure. Indirect TPMS often needs no sensor swap but can require recalibration if tire circumference changes significantly.

Sensor types and mounting styles

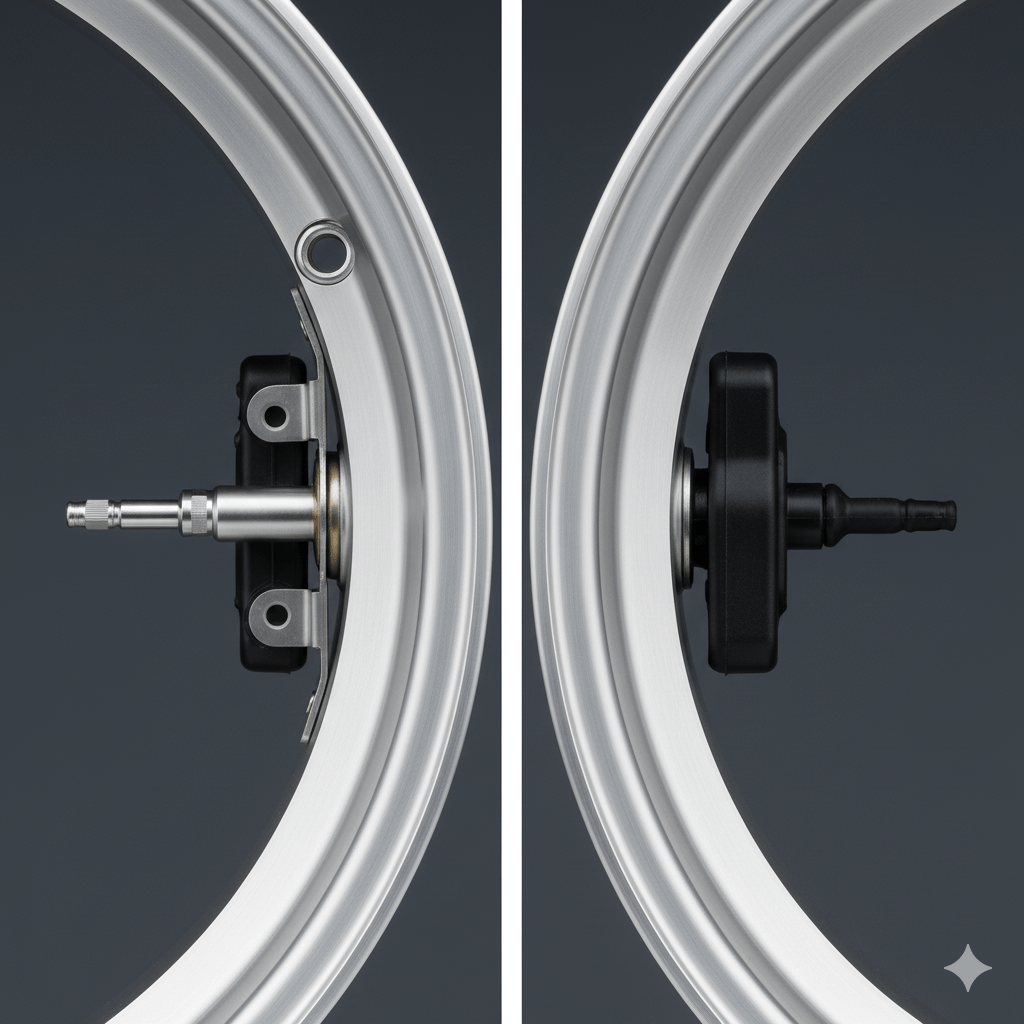

Direct sensors fall into a few mounting styles: clamp-in (rubber or metal stem with a band), snap-in (rubber stem that fits into a small hole), and banded sensors that bolt to the wheel. Identify which your vehicle uses. Clamp-in and snap-in sensors require an appropriate valve stem hole diameter and a flat seat surface. Banded sensors need clearance on the wheel barrel and often require specific spoke cutouts or valve pocket geometry. Note down the OEM sensor model and frequency code if visible on the sensor body.

Compatibility checklist before ordering aftermarket wheels

• Measure valve hole diameter on the replacement wheel and compare to the sensor stem base.
• Confirm wheel inner barrel clearance for banded or external-mounted sensors.
• Check center bore and hub-centric ring needs with the wheel vendor or our hub-bore guide.
• Verify bolt pattern and offset to prevent rubbing and ensure correct load distribution.
• Decide if OEM sensors will be reused or replaced. Replacements may require programming and new valve hardware.

Steps to test sensor fit before full install

Mock-fit one wheel and follow these steps. First, mount an OEM sensor to the tire assembly off the car and inflate to operating pressure. Seat the tire on the wheel and inspect from inside the barrel for interference, proper stem angle, and whether the sensor touches spokes or inner walls. Second, tighten the valve hardware or band to recommended torque and verify the stem seals. Third, mount the wheel to the car and confirm the sensor reads on the dashboard using the car's TPMS status Readout or a handheld TPMS tool.

Reset and re-learn procedures

Reset procedures vary by manufacturer and system type. For many vehicles, a re-learn is required after sensor replacement or sensor relocation between wheels. Common re-learn methods include driving at low speed for several minutes allowing the system to re-evaluate wheel speeds, using the vehicle's TPMS menu to initiate a manual re-learn, or using a TPMS scan tool that triggers each sensor at the valve stem. When reprogramming direct sensors, confirm sensor IDs and frequencies match the car's expected values. Always follow the vehicle manufacturer steps for re-learn to avoid persistent warning lights.

Troubleshooting failed reads

If a sensor does not register, check these points in order: sensor battery life, sensor frequency compatibility, physical interference inside the wheel, and programming. Many OEM sensors operate at standardized frequencies, but some vehicles use manufacturer-specific protocols. A handheld TPMS activation tool can confirm whether a sensor transmits. Replace sensors older than eight to ten years or with known battery issues, since internal batteries are not serviceable on most units.

Common installation mistakes and how to avoid them

• Wrong valve hole size: order wheels with appropriate bore or plan to change sensors. Small valve holes damage clamp-in stems, large holes will not seal snap-in stems.
• Incorrect stem angle: if the valve sits at an angle it will leak and will stress the sensor body. Ensure the wheel pocket aligns the stem perpendicular to the seal surface.
• Over-tightening band clamps: overtightening can fracture sensor housings. Follow torque specs for clamp bolts and valve nuts.
• Assuming all TPMS sensors are transferable: age, battery, and vendor-specific coding can prevent reuse.
• Not testing before final installation: always confirm at least one wheel transmits while still on the bench.

Product fit notes: FM01, FM02, FM07

When selecting aftermarket wheels, check vendor fitment notes for TPMS clearance. The FM01 Stratos, FM02 Overdrive, and FM07 Vector wheels have distinct inner barrel geometries. If you are considering the FM01 Stratos, verify the valve pocket depth and bolt-pattern options. The FM02 Overdrive offers deeper spoke pockets that may suit band-mounted sensors, while the FM07 Vector uses a narrower barrel that suits snap-in stems on many passenger cars. Always confirm with a tech sheet or physical measurement before installation.

When to replace TPMS sensors

Replace sensors if they fail to transmit, if the battery age is unknown, if the sensor body shows corrosion, or if the mounting style is incompatible with the new wheel. Replacement is also common when switching from indirect to direct TPMS or when upgrading to sensors with programmable IDs to match the vehicle. Budget $40 to $120 per sensor depending on vehicle make, frequency, and programming needs. Many shops include re-learn in the installation cost.

Tools and consumables for a clean install

Have a TPMS activation tool, torque wrench for valve nuts, new valve cores and caps, valve stem gaskets, and a handheld tire pressure gauge. If you keep OEM sensors, bring their data to the shop so the technician can confirm compatibility. Consider purchasing new valve stem hardware when changing wheels to ensure a proper seal and avoid leaks caused by old or damaged stems.

Linking fitment steps with lug nut and installation checks

Correct hardware matters. Verify whether your vehicle requires new lug nuts for aftermarket wheels by reading our guide at Do You Need New Lug Nuts for Aftermarket Wheels? Also follow a full install procedure listed in our Wheel installation checklist to confirm torque sequence, hub cleanliness, and final TPMS read verification.

Final checklist before driving

• Confirm each sensor transmits on the vehicle display or TPMS tool.
• Check for leaks at valve stems after 24 hours and again after 200 miles.
• Verify wheel lug torque and re-torque after initial drive per manufacturer spec.
• Record sensor IDs and tire pressures for future service.

Wrap up

TPMS aftermarket wheels compatibility depends on physical fit, sensor type, and the vehicle's re-learn capability. A short bench test and a single wheel mock-fit avoid common problems like read failures, leaks, and dash warnings. When in doubt, replace old sensors and use programmable units that match your vehicle. For product-specific fitment, refer to wheel technical sheets for the FM01 Stratos, FM02 Overdrive, and FM07 Vector to confirm valve pocket diameter and barrel clearance prior to purchase.
