Determining whether hubcentric rings needed depends on your vehicle hub and aftermarket wheel centerbore. Learn how to measure hub and wheel openings, when rings stop vibration, and practical ring sizes to keep a tight, centered fit when installing new wheels.
Measure the hub and wheel centerbore first

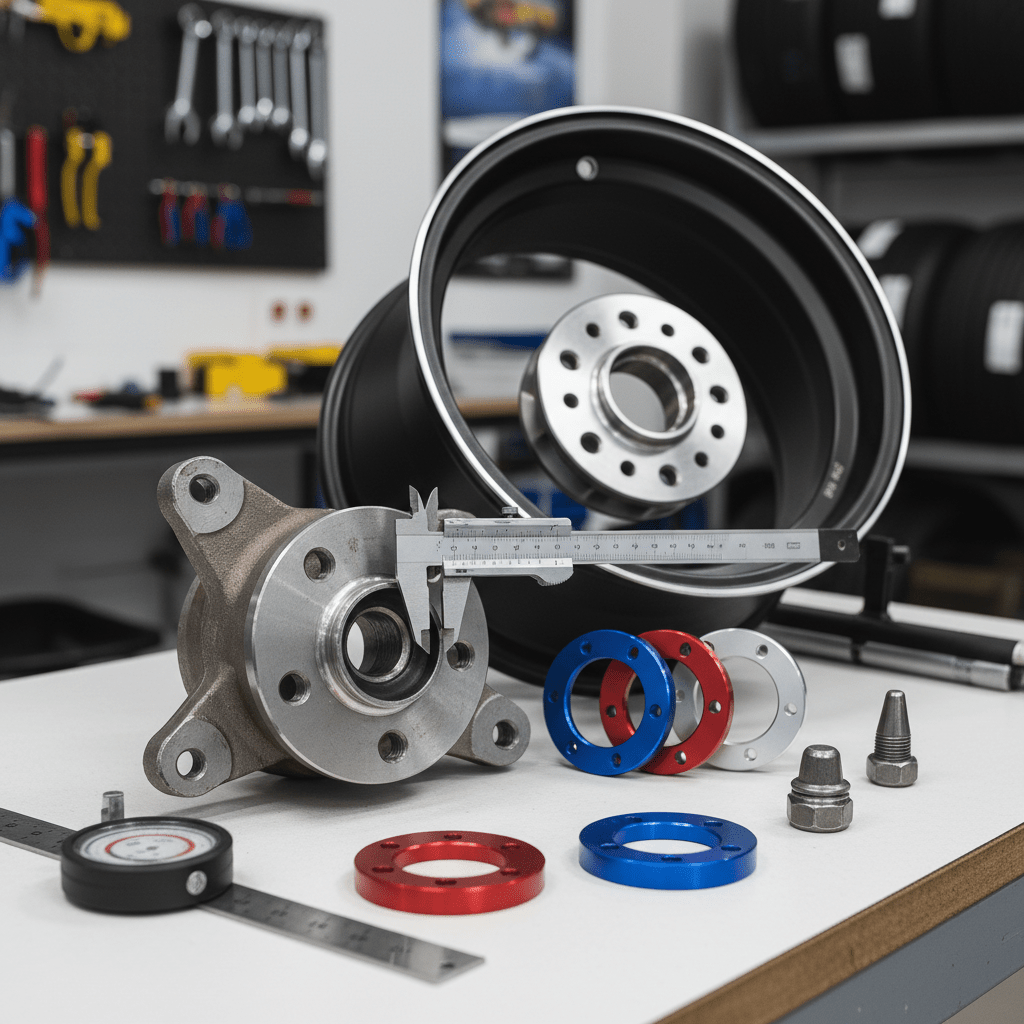

If you want to know whether hubcentric rings needed for your wheels, start by measuring the vehicle hub diameter and the wheel centerbore with a caliper. Record three measurements on the hub and three on the wheel, average them, and note the tolerance. If the wheel centerbore is larger than the hub by more than 0.5 mm, a ring or spacer is likely required to avoid play and vibration.
Tools and quick steps
- Digital caliper for accurate diameter readings to 0.01 in or 0.1 mm.
- Tape measure or ruler to confirm approximate sizes if a caliper is not available.
- Clean the hub face and wheel centerbore of dirt and corrosion before measuring.
- Measure: hub diameter, wheel centerbore diameter, and wheel stud-to-center dimensions if applicable.
Practical thresholds
Use these practical thresholds when deciding if hubcentric rings are needed: if the centerbore oversize is less than 0.5 mm, the wheel may still center reliably on lugs alone; between 0.5 mm and 2.0 mm a ring can eliminate play and reduce risk of vibration; larger mismatches over 2.0 mm usually indicate the wheel was not intended for your hub and may require replacement wheels or precision-machined rings.
Why fitment matters: vibration, stress, and safety
When a wheel does not sit centered on the hub, the wheel can wobble under load. That wobble leads to steering vibration, uneven tire wear, and increased stress on wheel studs and hubs. Proper centering transfers load from the studs to the hub face, improving longevity and reducing the chance of loosening. Hub-centric fit creates a precise mechanical interface between wheel and vehicle hub that lug nuts alone cannot guarantee when centerbores do not match.
When lugs are not enough
Lug-centric wheels rely on the studs and lug nuts to center the wheel. That works when the stud pattern and tolerances are tight and the wheel centerbore is close to the hub diameter. However, for many aftermarket wheels or when adapters or spacers are used, lug-centric fit can allow a few thousandths of an inch of shift. That small shift can be felt at speed as vibration. Rings remove that clearance and center the wheel on the hub face.
Common centerbore sizes and ring options
Aftermarket wheels and OEM hubs come in a range of centerbore sizes. Here are common examples and typical ring solutions.
| Vehicle hub diameter (mm) | Typical wheel centerbore (mm) | Ring size needed |
|---|---|---|
| 56.1 | 66.1 | 10 mm ring |
| 57.1 | 73.1 | 16 mm ring |
| 64.1 | 72.6 | 8.5 mm ring |
Use rings made of durable nylon or aluminum that match the hub material and temperature range. Choose press-fit rings sized to the hub outer diameter and wheel inner diameter, not the stud hole. Rings are inexpensive and simple to install, but verify dimensions before ordering.
Installation checklist
Follow this checklist when installing hubcentric rings and wheels to avoid common mistakes.
- Clean mating surfaces: remove rust, paint, and debris on the hub and inside the wheel centerbore.
- Test fit the ring dry before final installation to ensure it nests flush against the hub and wheel.
- Use the correct ring orientation if the ring has a lip or bevel; many rings fit only one way for a flush seat.
- Install the wheel, hand-thread the lug nuts, then torque in a star pattern to the vehicle manufacturer torque spec using a calibrated torque wrench.
- Recheck torque after 50 to 100 miles driven.
When not to use hubcentric rings
Do not use hubcentric rings to mask structural or compatibility issues. If the wheel centerbore is excessively large, rings will not correct offset or bolt pattern mismatches. Avoid rings on wheels with cracked or deformed centerbores. If a wheel requires a ring thicker than a few millimeters to reach the hub, re-evaluate the wheel choice. Rings also cannot compensate for incorrect offset that causes rubbing or poor handling.
Adapters and spacers versus rings
Adhesive-backed or slip-on rings only center the wheel. Wheel spacers and adapters change track width and bolt pattern and should be selected separately. When using spacers or adapters, rings remain useful to preserve centering between the hub and the adapter or the adapter and the wheel. Always choose hub-centric adapters if centering is needed for your application.
Buyers guide: sizing and material
Match ring inner diameter to the wheel centerbore and ring outer diameter to the hub. Standard materials are high-density nylon for corrosion resistance and aluminum for a precise fit. Nylon works well for most street applications and is cost effective. Aluminum rings are preferred when repeated removal and installation occur, or when higher precision is required.
How to read the numbers
If your hub measures 66.1 mm and your wheel centerbore measures 73.1 mm, you need a ring with an outer diameter of 66.1 mm and an inner diameter of 73.1 mm. Many sellers list rings in the format 73.1-66.1 which means inner 73.1 mm, outer 66.1 mm. Always double-check the order before purchase.
Product highlights and fitment examples
Forged Metallics FM-series wheels are designed with centerbore options used across many modern vehicles. If you are considering the FM01 Stratos, confirm your hub diameter and compare to the wheel centerbore posted on the product page. See the FM01 Stratos product page for centerbore specs and fitment notes: FM01 Stratos. Similar FM-series options include the FM02 Overdrive and FM07 Vector; check each product's centerbore before purchase to determine whether hubcentric rings are needed.
- FM02 Overdrive - verify centerbore if installing on vehicles with uncommon hub sizes.
- FM07 Vector - intended centerbore options may fit many hubs but measure before installing rings.
Common fitment mistakes to avoid
- Assuming all aftermarket wheels are hub-centric. Some wheels are deliberately lug-centric and rely on studs for centering.
- Using the wrong ring orientation or a damaged ring that does not seat flush.
- Overlooking corrosion on the hub face which prevents full seating of the ring and wheel even when sizes match.
- Failing to torque in the proper sequence or to recheck torque after initial driving, which can lead to loosening and vibration.
Related fitment checks
Check bolt pattern, offset, and lug nut compatibility along with hub bore. Use our bolt pattern guide to confirm stud pattern quickly: Bolt Pattern Guide. Also consider whether you need new lug nuts for aftermarket wheels before final installation: Do I need new lug nuts for aftermarket wheels?
Final decision flow
Follow this final flow to decide if you need hubcentric rings: measure hub and wheel centerbore, calculate oversize tolerance, inspect surfaces, then choose rings if the oversize is between 0.5 mm and 2.0 mm. If oversize is minimal and wheel centers cleanly on the hub, rings are optional. If oversize is large, choose different wheels or consult a wheel specialist for custom solutions.
Summary action points
- Measure both parts accurately with a caliper.
- Buy rings that match inner and outer diameters exactly; prefer OEM-fit sizes.
- Clean mating surfaces and test-fit before torquing.
- Re-torque after short driving and monitor for vibration.
Following these steps reduces vibration risk and protects studs and hubs during everyday driving. Proper hub-to-wheel fit is a small investment that prevents costly repairs and improves driving confidence.
