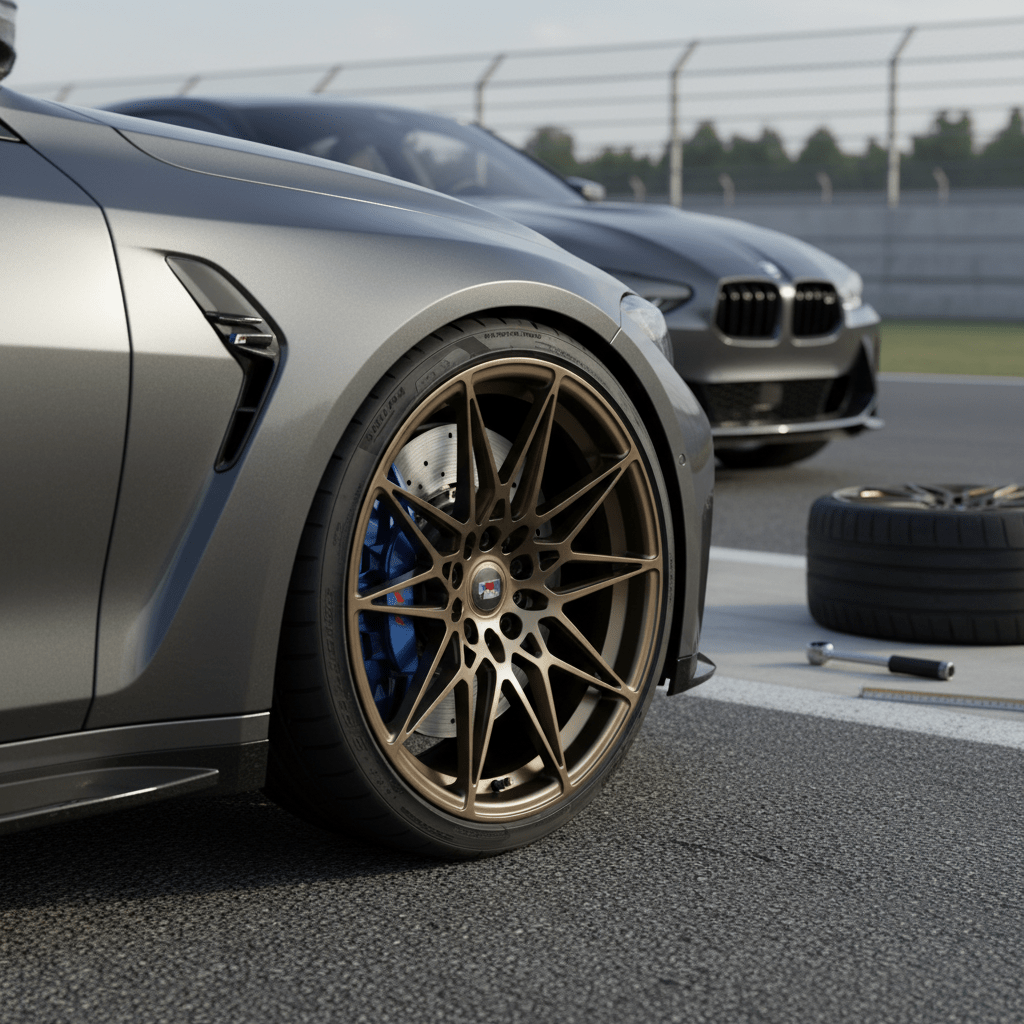

BMW M3/M4 Forged Wheels: Track-Ready Fitment and Brake Clearance

Measure first: a practical clearance checklist for BMW M3 forged wheels brake clearance

Start by measuring caliper-to-hub and caliper-to-lip clearances before ordering wheels. Gather a straight edge, caliper, a ruler or digital caliper, and the wheel specifications you plan to run. With the wheel removed and the car on jack stands, record the distance from the outermost face of the brake caliper to the inner barrel where spokes will pass. Repeat for the outer edge near the wheel lip. Write down rotor diameter, caliper width, and any brake hat protrusions.

Why precise measurements matter on track cars

Track driving amplifies forces that can push tires and wheels into suspension components. Heat soak can change pad and caliper position slightly. A wheel that merely fits on the street can contact the caliper after repeated laps. Use your measurements to select wheel widths, offsets, and spoke designs that preserve safe clearance under load.

Step-by-step measurement process

• Lift the car and remove the wheel. Place wheel chocks and support the car on rated stands.
• Use a straight edge across the caliper face and measure to the expected plane of the wheel spokes or inner lip where the spokes will pass.
• Measure rotor diameter and note offset of the rotor hat relative to the hub face.
• Record brake hardware protrusions such as pad ears, wear indicators, or sensor housings.
• Measure backspace on candidate wheels or get wheel drawings from the vendor. Backspace plus rotor offset will determine spoke-to-caliper clearance.
• Allow a safety margin. For track use, aim for more clearance than minimal street fits.

Interpreting wheel specs: widths, offsets, and backspacing

Wheel width and offset dictate where the hub mounting surface sits relative to the rim. If you have the caliper measurements from the checklist, convert wheel offset to the expected distance between the hub face and spoke plane. Many vendors publish technical drawings with hub centerline and mounting pad location; use those to compare against your caliper measurements.

Common wheel size guidance for M3/M4

Typical track-oriented sizes for BMW M3 and M4 platforms start at 19 inches for improved tire contact patch and compatibility with stock rotors. Common widths are 9.5 to 10.5 inches front and 10.5 to 12 inches rear, depending on tire choice and fender clearance. Exact offset varies by wheel design and whether the car has stock or big brake kits, so match numbers, not assumptions.

Calipers, big brake kits, and wheel face design

Caliper shape matters as much as shoespace. Big brake kits often extend further outward and inward than stock calipers. A wheel with open spokes and a narrow spoke foot can clear a large caliper where a deep dish or thick-spoke wheel cannot. If you run a big brake kit, obtain or create a mock-up template of the caliper profile and compare it to the wheel spoke plane.

Template method

• Trace the caliper outline on cardboard while mounted to the hub.
• Hold the template at the expected spoke plane derived from wheel offset/backspace.
• If the template overlaps where spokes will sit, the wheel will not clear without changing offset or wheel choice.

FM02 and FM07 fitment notes and shopping tips

Both FM02 and FM07 are forged wheel options that come in multiple width and offset combinations. Use the measurement checklist above to confirm which widths and offsets will clear your calipers. Before finalizing a purchase, compare the vendor-provided technical drawing to your caliper template and measurements.

Link directly to the FM02 specifications and ordering options here: FM02 Overdrive. For FM07 Vector options, check the product page at /products/fm07-vector-wheels-set-of-4 to confirm available offsets and widths.

Questions to ask when choosing between FM02 and FM07

• What offset and backspace options exist for the exact diameters and widths you want?
• Are technical drawings available that show hub face to spoke plane distances?
• Will the wheel require hub-centric rings or special lug nuts for proper fitment?
• Do you plan to run spacers or a different hub assembly that changes the effective offset?

Track-ready fitment decisions

For track use, prioritize a wheel and tire package that keeps the tire contact patch centered under load and preserves brake cooling. Wider tires can push the wheel edge and spokes closer to fenders and inner liners, so balance tire width with suspension geometry and wheel offset to avoid rubbing during cornering. If you plan aggressive camber or lowered ride height, allow extra clearance at the inner edge for positive compliance.

Brake cooling and spoke design

Spoke patterns influence airflow to rotors. Open, multi-spoke designs generally flow more air toward the rotor than closed or deep-dish styles. If you run high-duty track sessions, choose a wheel that supports rotor cooling while still clearing calipers.

Installation and final checks

Before final installation, perform these checks on the car with the selected wheel and expected tire mounted:

• Torque lug nuts to manufacturer specs and re-torque after initial road sessions. Refer to the Wheel Installation Checklist for torque guidance.
• Rotate the steering lock-to-lock and check inner fender and caliper clearance at full lock.
• Lower the car and bounce the suspension to simulate compression; check for contact with caliper and inner lip.
• Perform a short low-speed test drive to confirm no noise or rubbing under load.

When to consult a pro

If you run extreme camber, very wide tires beyond standard fitments, or a nonstandard brake kit, have a professional fit specialist mock up wheels on your car. They can check axle-to-arch relationships, rubbing under lateral load, and whether wheel spacers are a safe, temporary solution.

Resources and internal links

For deeper technical steps on measuring caliper clearance, see the Brake clearance guide. For product details and available offsets for the FM02 and FM07, visit the product pages linked above. Use technical drawings from the vendor to confirm spoke plane locations before ordering.

Final checklist before checkout

• Confirm wheel diameter, width, and offset match your measured clearances.
• Verify the vendor provides a drawing or CAD file showing hub face to spoke plane.
• Confirm tire selection will not push spokes into fenders or calipers under load.
• Plan for hub-centric rings and correct lug nuts if required.
• Keep a safety margin for track heat and suspension compression.

Choosing forged wheels for a BMW M3 or M4 requires measurement, conservative margins, and matching wheel geometry to brake hardware. Use methodical measurements, vendor drawings, and mock-ups to avoid costly returns or unsafe fits. When in doubt, reach out to a wheel fitment specialist or the wheel vendor with your vehicle, suspension, and brake details to confirm the optimal FM02 or FM07 configuration for track use.
